Product Details:
Payment & Shipping Terms:
|
| Product Name: | Liquid Crystal Hydraulic Universal Testing Machine | Structure: | 4 Columns And 2 Screws |
|---|---|---|---|
| Max.load: | 1000KN | Load Accuracy: | ±1% |
| Circular Sample Clamping Diameter: | Φ13～Φ40mm | Flat Specimen Clamping Thickness: | 30mm |
| Display: | LCD | ||
| High Light: | astm standard for universal testing machine,GB228 hydraulic universal testing machine,utm hydraulic universal testing machine |
||
Digital display hydraulic universal testing machine
Overview

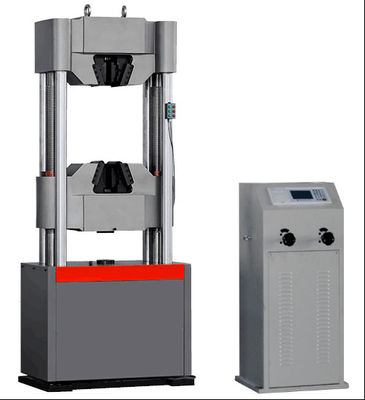

WE-1000D Liquid crystal digital display hydraulic universal testing machine host using cylinder under the host, mainly used for metal, non-metal, composite materials and products of tensile, compression, bending, shear and other mechanical properties test, in line with the national standard "metal tensile test Method" GB228 requirements, Widely used in construction, metallurgy, aerospace, machinery manufacturing, wire and cable, rubber and plastic and other industries of material inspection and analysis, is the ideal testing equipment for scientific research institutes, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection arbitration and other departments.
According to the standard
The hydraulic universal testing machine to meet the national standards GB/T 10802-2006,GB/T 10807-2006,GB/T10808-2006
Main technical indicators
| No. | The project name | Parameter |
| 1 | Maximum test force kN | 1000 |
| 2 | Relative error of test force | ≤In value±1% |
| 3 | Measuring range of test force | Maximum test force2%~100% |
| 4 | The clamping way | Hydraulic clamping |
| 5 | Circular sample clamping diameter range mm | Φ13～Φ60 |
| 6 | Flat sample clamping thickness range mm | 0-40 |
| 7 | Flat sample clamping width mm | 110 |
| 8 | Maximum tensile test space mm | 550 |
| 9 | Maximum compression test space mm | 550 |
| 10 | Dimensions of control cabinet mm | 1200×620×850 |
| 11 | Main engine dimensions mm | 820×720×2300 |
| 12 | The motor power kW | 2.5 |
| 13 | Quality of the host kg | 2800 |
| 14 | Net column spacing(mm) | 470 |
| 15 | Dimensions of upper and lower pressure platesmm | Φ160 |
| 16 | Maximum piston stroke mm | 200 |
| 17 | Maximum speed of piston movementmm/min | about 60 |
| 18 | Test space adjustment speedmm/min | about 100 |
Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory + trade (ntegration), 18 years focusing on test instnments feld, 14 years export experl ence.
Q2. How to choose the most suitable products?
A: Our professional leam will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification
Q3.what's the dellvery term?
A: At most of time, we have stock in the factory. If there is no stock, normaly, the delivery time is 15-20 working days after deposit receipt
If you are in urgent need, we can consider making special arrangement for you.
Q4.Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request.
Don't hesitate to tell us your requirement we will try our best to meet your needs.
Q5. Can we visit your factory betore order?
A: Yes, we warmly welcome and sincerely invite you or your team to vist our factory, we will help to arrange hotel and pick up you from airpor.
Q6. How about your warranty?
A: Generaly, our waranty is one year witrin the warranty period. we can offer technlque support and part parts change. Necessarily, our engineers may go to your place for better service.
Q7. How about the packing for machine, Is it safely protected during transportation?
A: Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by ar without damage.
