|Product Name:||60 Ton UTM Hydraulic Universal Tensile Testing Machine||Model:||WAW-600F|
|Structure:||6 Columns||Control Way:||Dual Control Mode Of Manual And Electro-hydraulic Servo|
|Max.load:||600KN||Max. Tension Test Space:||600mm (can Customize)|
|Max.Compression Test Space:||530mm (can Customize)||Round Specimen Clamping Range:||Φ13-26；Φ26-40mm|
universal tensile utm testing machine,
hydraulic utm testing machine,
60 ton utm testing machine

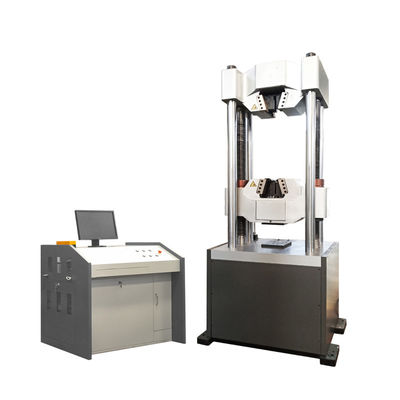

60 Ton UTM Hydraulic Universal Tensile Testing Machine
The machine adopts hydraulic loading, Computer control, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Price advantage
We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
4. Host Features
4.1 Adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
4.2 The structure is designed with solid four column and two screw, the whole machine has strong stability.
4.3 The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
4.4 Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
4.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.
6. Overload protection
6.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
6.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.
7. Main specifications
|Control way||Dual control mode of manual and electro-hydraulic servo|
|Load accuracy||≤±1% /≤± 0.5%|
|Load range||2%-100%FS /0.5%-100%FS|
|Deformation Measurement Range||2%～100%FS|
|Deformation accuracy||≤±1%/± 0.5%|
|Max piston moving speed||0-50mm/min stepless speed adjusting|
|Crosshead lifting speed||120mm/min|
|Max. tension test space||600mm (can customize)|
|Max.Compression Test Space||530mm (can customize)|
|Clamping method||Hydraulic Automatic Clamp Fixture|
|Round specimen clamping range||
|Flat specimen clamping range||0-15 mm|
|Compression plate size||φ160mm|
|Power supply||3-phase,AC380V, 50Hz (can be customized)|
