Determination Resistance Internal Bursting Pressure Test Iso9080

Determination Resistance Internal Bursting Pressure Test Iso9080
Determination Resistance Internal Bursting Pressure Test Iso9080
video play

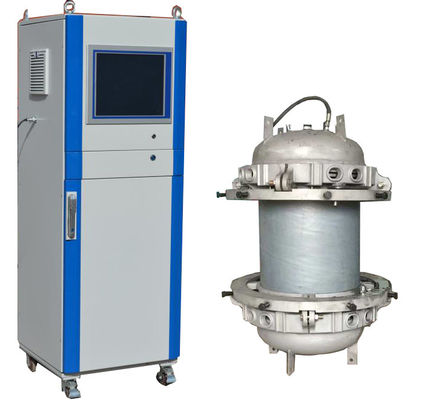

Large Image :  Determination Resistance Internal Bursting Pressure Test Iso9080

Product Details:
Place of Origin: China
Brand Name: JINHAIHU
Certification: ISO 9001
Model Number: XGY-10C-Ⅴ
Payment & Shipping Terms:
Minimum Order Quantity: one set
Packaging Details: Standard wooden case
Delivery Time: 10 days after order
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detailed Product Description
Product Name: Determination Of The Resistance To Internal Pressure For Thermoplastics Pipes, Fittings And Assemblies Control Mode: Computer
Stations: 3, 4, 5, 6, 8, 10, 15, 20, 45 Stations(can Customize) Meet Standard: ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479
Max. Pressure: 10Mpa(can Be Customized), 1500PSI, 100Bar End Caps: Diameter From Φ6mm To Φ2000mm
Temperature Range: 15℃-95℃ Pressure Unit: MPA, PSI, Bar
Temperature Unit: ℃, ℉
High Light:

determination resistance internal bursting pressure test

,

determination resistance internal pressure test

,

iso9080 internal bursting pressure test

Determination of the resistance to internal pressure for thermoplastics pipes, fittings and assemblies



I. Function & Applications

XGY-10C Hydrostatic blasting tester is suitable for the determination of hydraulic instantaneous blasting and long-term constant pressure failure time of thermoplastic pipes for various fluid conveying plastic pipes. It is a necessary testing instrument for scientific research institutes, quality inspection departments and pipe manufacturers.

This series is the latest model, using microcomputer control technology, with test parameters set storage, display printing curve, real-time analysis, experimental report output and other functions.The software running Windows system. According to national standards, international standards or standards provided by users, the long-term hydrostatic performance and instantaneous blasting test of various pipes can be detected and judged, and the experimental data can be analyzed and processed, and the output can be printed.





II.Standards

GB/T6111-2018, GB/T15560-1995, GB/T18252-2008, GB/T18476—2001, ASTM D1598-2004, ASTMD1599, ISO1167, ISO13479, ISO9080, DIN EN 921 (1995-01), ASTM F1335



III. Technical data

Max.pressure 10MPa
Test stations 3, 4, 5, 6, 8, 10, 15, 20, 45 stations(can customize)
Control mode computer control
Data preservation Each station has power off data protection function, boot can be restored
Time timing time 0~9999 h 59 min
Timing accuracy ±0.1%
time resolution 1s
Minimum Set Unit min
Pressure Pressure control range 0.2~10MPa
Pressure indicator units MPa,bar or PSI
Pressure control accuracy -1%~ +2%
Constant Voltage Control Precision of Full Load Range Within ±1%
Pressure display resolution 0.001MPa,0.01bar or 1PSI
measuring range 4%~100%FS
Allowable error limit for indication Within 1%



IV. Features

A. Features of main frame

Double-tube circuit structure

Because the structure of the traditional pipe hydrostatic testing machine is transmitted to the sample by pressure acquisition, the other end is connected with the pressure relief valve, and There is a pressure difference between the specimen and the sensor because there is no reflux. In order to solve the problem, our pressure control system are connected with the sample by double-tube.





Integrated modular assembly

Each module is 5 or 6 stations, each independent station does not interfere with each other, can be set separately in the range of 0.2 MPa~ full load range, one test rupture does not affect the normal test of other roads.





Determination Resistance Internal Bursting Pressure Test Iso9080 0



Complete function

With rupture identification, real-time monitoring, power-off pressure, power-down protection, call automatic recovery. printing, storage test results and other functions. Control the main interface with Chinese and English selection, provide a variety of language operation functions.

The reference horizontal plane of the pressure measuring device is consistent with the horizontal plane of the constant temperature medium box.

Determination Resistance Internal Bursting Pressure Test Iso9080 1



B. Features of constant-temperature tank

Constant-temperature tank is composed of the tank body, imported circulation pump, heating unit and temperature keeping system.

1. The body is composed of structural frame, bottom, 304# stainless steel internal bladder, and stainless steel or aluminum alloy outer covering.

2. Thick heat insulation of rigid polyurethane foam ensures the constant temperature and energy saving performance.

3. The cover of the constant temperature tank can be equipped with automatic lifting and closing device, which is reliable and convenient.

Determination Resistance Internal Bursting Pressure Test Iso9080 2

C. End caps

1.Include bolt, O ring ,vent valve etc all assembled complete.

2.Fixture structure:

Half round pot form,easy fit out , no leakage, convenient operation.

Determination Resistance Internal Bursting Pressure Test Iso9080 3
