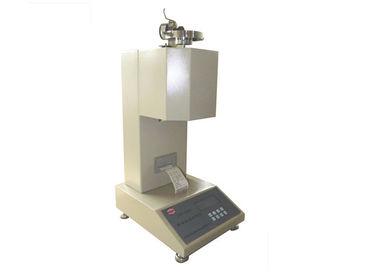

XNR-400B Liquid-crystal display plastic melt flow index tester
General introduction
XNR-400B Melt Flow Indexer is an instrument used to indicate the MFR and the MVR of thermoplastic plastic, which is designed and produced according to the standards like GB/T3682-2000, ASTM D1238-98, JB/T5456, ISO1133, etc. When measuring MFR, the specimen is cut automatically, the time interval of cutting specimen is controlled by PLC and the weight is measured by the balance. When measuring MVR, with the displacement measured through photoelectric encoder and the time measured automatically, the needed time for the piston to move a required distance is measured first and the MVR could be figured out through the formula. Both of the results of MFR and MVR will be displayed on the LCD screen and printed out by the micro-printer. The measured data is very accurate, the operation is very easy, and the performance is very stable. It is adequate for not only engineering plastics with high melting temperature such as polycarbonate, fluoroplastic, and nylon, but also the plastics with low melting temperature such as polyethylene, polypropylene, polystyrene, ABS resin and acetaldehyde resin. It is widely used in plastic production and petrochemical industry, and also in related institutions, research units and commodity inspection department.
Application:
XNR-400B Melt Flow Index Tester is accordance to ISO1133;GB3682 2000,ASTM D1238.
It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic
productions, widely used in factories, products quality testing station, scientific and research
institutes, and concerned industries.
Main Specification:
A.Extrusion Discharging Part:
Diameter of discharging outlet: Φ2.095±0.005mm
Length of discharging outlet: 8.000±0.025mm
Diameter of charging barrel: Φ9.550±0.025mm
Length of charging barrel: 152±0.1mm
Diameter of piston rod head: Φ9.475±0.015mm
Length of piston rod head: 6.350±0.100mm
B.Standard Load Of Test (eight class):
