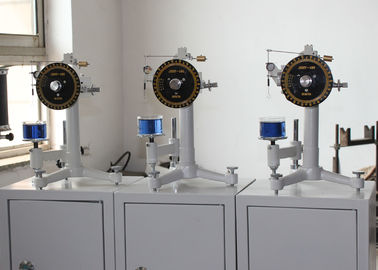

JZHY-180 Surface Tensiometer/Surface Tension Of Liquid
I Technical data:
1) Measuring method: manually
2) Measuring range: 0-180mN/m
3 )Minimum show value: 0.1mN/m
4) Repeat accuracy: ≤1%
5) Radius of platinum circle: 9.55mm
6) Radius of platinum wire: 0.3mm
7) Size: 240*270*325mm
8) Net weight: 4.3kg
II Performance:
Manually Operated Tensiometer is operated manually and the value of the tension is dial-displayed.
III Standards:
JB/T9388 ISO/1409
IV Applicability:
Physical method is applied to measure the tension of liquid. It can measure the tension value of liquid surface and interface precisely.This kind of tensiometer is widely used in science institutes and universities as well as water and power sectors.
Ⅴ Configuration
| Name | Quantity |
| Main frame | 1 |
| Computer | 1 |
| Platinum Circle | 2 |
| beaker | 1 |
| hook | 1 |
| torsion wire | 1 |
| Calibration weight(500mg) | 1 |
