Product Details:
Payment & Shipping Terms:
|
| Product Name: | XRW-300A Thermal Deformation And Vicat Softening Point Temperature Testing Machine | Heating Rate: | 50℃/h, 120℃/h |
|---|---|---|---|
| Max. Temperature Deviation: | ±0.5℃ | .Temperature-control Range: | Room Temperature ~ 300℃ |
| Vicat Load: | 10N ± 0.2 N , 50N ± 1N | Max. Deformation Deviation: | 0.001mm |
| Deformation Measuring Rage: | 0 ~ 1mm | Sample Frame Number: | 3 |
| High Light: | hdt vicat tester,vicat softening point apparatus |
||

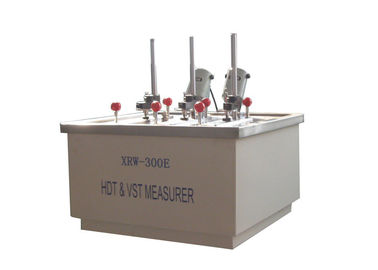

XRW-300A Thermal Deformation and Vicat Softening Point Temperature Testing Machine
Applications:
Determine non-metallic materials, plastics, rubber, nylon, electrically insulating material such as heat distortion temperature and Vicat softening point temperature.This series is all quality control institutes, universities and enterprises self-test of essential equipment.
Features:
XWB-300AB HDT & VST Measurer adopts the international and national standards: ISO75—1:1993 Plastics - Determination of temperature of deflection under load, ISO306:1994 Plastics -- Thermoplastic materials -- Determination of Vicat softening temperature (VST), GB/T1633—2000 Thermoplastic materials -- Determination of Vicat softening temperature (VST) and GB/T1634—2001 Plastics - Determination of temperature of deflection under load. It adapts to the rapid development of the plastics industry and improves the level of the material research and test. It is controlled by single-chip microcomputer. It has a stable property, easy operation and high degree of automation. And all of these make it the advanced test instrument for measuring the deflection and softening temperature of non-metal material.
| Model | XRW-300A |
| Technical data |
1. Equipped with 3 stations (Ability to test 3 samples simultaneously) 2. Air above 150 Degree centigrade, 150 Degree centigrade the following water or natural cooling. 3. Deformation measurement: displacement transducer 4. Heating Rate: 50oC/h, 120oC/h 5. Max. Temperature Deviation: ±0.5oC 6. Max. deformation deviation: 0.01mm 7. Vicat load: 10N ± 0.2 N , 50N ± 1N 9. Temperature-control Range: room temperature ~ 300oC 10. Deformation Measuring Rage: 0 ~ 1mm 11. Sample Frame Number: 3 12. Test Span: 60~120mm 13. Heating Power: 4KW 14. Power Supply: 220V 50Hz |
| Type and display |
table type, |
| Standards | GB/T1633, GB/T1634, ISO75, ISO306,ASTM D648, ASTM D1525,ISO 2507 |
| Usage | Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges. |
