Product Details:
Payment & Shipping Terms:
|
| Product Name: | XNR-400C Plastic Melt Flow Index Testing Equipment/Melt Flow Rate Tester | Max.temperature: | 400℃ |
|---|---|---|---|
| Test Method: | MFR & MVR | Display: | Color Touch Screen |
| Control: | PLC | Temperature Accuracy: | 0.1℃ |
| Standard: | ISO1133, ASTM D1238, ASTM D3364 | Printer: | Yes |
| High Light: | melt flow index machine,melt flow index instrument |
||

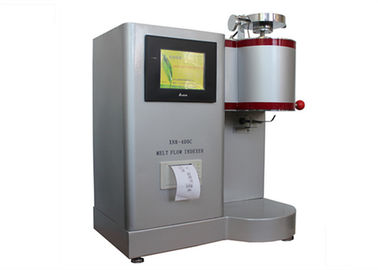

XNR-400C Plastic Melt Flow Index Testing Equipment/Melt Flow Rate Tester
General introduction:
XNR-400C seris is a high precise melt flow index mfi testing machine for the measurement of melt flow rate (MFR)/(MI) and melt volume rate (MVR) in quality control and research applications. It's suitable to measure melt flow character of PP, PE, POM, ABS, PVC etc. plastics and plastic productions, widely used in factories, products quality testing station, scientific and research institutes, and concerned industries.
Conform with standard ISO1133; ASTM D1238, ASTM D3364;
Features:
1, Mainframe is desk-top model, with beautiful appearance and stable performance, high accuracy, easy to use.
2, With high sampling, and high control rate.
3, Automatic cutting specimen and automatic print test result.
Specimen outlet part:
1.Outlet diameter: Φ2.095±0.005mm
2.Outlet length: 8.000±0.025mm
3.Screw barrel internal diameter:Φ9.550±0.025mm
4.Screw barrel length: 152±0.1mm
5.Diameter of piston-rod head: Φ9.475±0.015mm
6.Length of piston-rod head: 6.350±0.100mm
Main technical data:
| Model No. | XNR-400C |
| Measuring Method | MVR & MFR |
| Display&Print | Touch Screen, Results printed by inner printer |
| Warranty | 2 years on heating jacket |
| Cutting |
Auto |
| Max Temperature | 400oC |
| Test load (Eight grades) | 0.325kg,1.200kg,2.160kg,3.800kg,5.000kg,10.000kg,12.000kg,21.600kg |
| Controlled Accuracy | ±0.2oC |
| Measuring Range | (0.1~100)g/10min (0.01~350)cm3/10min |
| Display Resolution | 0.1oC |
| Power Supply | 220V 450W |
| Standards | GB3682 ISO1133 JB/T5456 ASTM D1238 ASTM D3364 |
