|Product Name:||Hydrostatic Pressure Testing Equipment/Hydrostatic Pressure Pipe Test Machine||Standard:||ISO9080,ISO1167,ASTMD1598,ASTM F1335|
|Brand:||JINHAIHU||Max.Pressure:||10MPA, 16MPA, 20MPA|
|Time count range:||1 - 9999h 59min 59s||Power Supply:||380V AC(three Phase Four Wire System)|
pvc pipe testing machine,
pipe hydrostatic testing equipment
Hydrostatic Pressure Testing Equipment/Hydrostatic Pressure Pipe Test Machine
Hydrostatic Pressure Test Machine/Burst Pressure Testing Machine by the main pressure control system, the dielectric constant temperature Tank, end caps , refrigeration system ,computer and printer five parts, please choice according to the specific production situation.
II. Technical data
1~100stations can be customized, pressure of each station independent
control; one of the station can execute bursting test.
|Max. pressure||0 - 10Mpa|
Constant pressure accuracy
|Time count range||
1 - 9999h 59min 59s
media box temp.
|Ambient temperature to 95ºC;
15ºC to Ambient temp. with refrigeration system
|Temp. control accuracy:||
the average temperature deviation is ±0.5℃; the max deviation is ±1℃
|Power supply||380V AC 50HZ, 3 phase, 24KW|
Pipe sample diameter range
Pressure control system (include Pressure source,
electromagnetism valve(American Parker), Pressure sensor(English Barnes), Big capacity pressure
accumulator, Small pressure accumulator), Temperature control
system (heating unit), Cycling pump, Constant temperature tank,
End closure, PC, printer, software, manual etc.
A. Features of main frame
1. Continuous barrier-free work to ensure the integrity of the test.
2. Easy to operate and maintain for branch stations are independent from each other.
3. Main components are imported from Europe or America, which are stable and reliable.
4. On the basis of the meters, the instrument is also equipped with brand laptop or desktop which is connected with the meters by serial ports.
5. Pressure-time curve can be drawn.
6. Pressure value can be inquired real-time.
7. Test reports can be printed.
8. Computer can stop working at any time, because the meters of the main frame can still work.
9. The PC is installed with the latest version of hydrostatic pressure test software in Chinese or English which are free to upgrade for life.
B. Features of constant-temperature tank
Constant-temperature tank is composed of the tank body, imported circulation pump, heating unit and temperature keeping system.
1. The body is composed of structural frame, bottom, 304# stainless steel internal bladder, and stainless steel or aluminum alloy outer covering.
2. Thick heat insulation of rigid polyurethane foam ensures the constant temperature and energy saving performance.
3. The cover of the constant temperature tank can be equipped with automatic lifting and closing device, which is reliable and convenient.

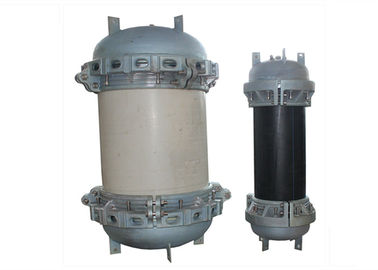

C. End caps:
1. Include bolt, O ring ,vent valve etc all assembly complete.
2. Fixture structure:
Half round pot form,easy fit out , no leakage, convenient operation.
