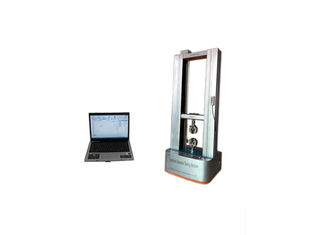

Double Armed Computerized Tensile Testing Machine , Tensile Strength Test Equipment

Double Armed Computerized Tensile Testing Machine , Tensile Strength Test Equipment
Double Armed Computerized Tensile Testing Machine , Tensile Strength Test Equipment
video play

Large Image :  Double Armed Computerized Tensile Testing Machine , Tensile Strength Test Equipment

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XWW-
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5800~6500/ set
Packaging Details: Standard export wooden cases
Delivery Time: 10~20 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Computer Control Double-Armed Electronic Universal Testing Machine Authentication: ISO9001
Capacity: 5KN/10KN/20KN/50KN/100KN/200KN/300KN Accuracy: ±0.5%
Computer Control: Yes Force-measuring Range: 0.4%~100%FS
Force-measuring Accuracy: ≤0.5%
High Light:

universal tensile testing machine

,

computerized tensile testing machine

Computer Control Double-Armed Electronic Universal Testing Machine



Description:



   The XWW series Computer Control Double-Armed Electronic Universal Testing Machine is widely used in the field of rubber, plastic, PVC pipe, board, metal wire, cable, waterproof materials and film industry. By using different kinds of accessories, it can do the test of tensile, compression, bending, shear, peeling, tearing and all other kinds of testing. This is a common testing equipment for all kinds of lab and quality control department to determine the material quality and mechanics analyzing.



Maintechnical parameter of Computer Control Double-Armed Electronic Universal Testing Machine:

Model XWW
Maximum load 50KN, 100 KN (optional)
Accurate 1 grade /0.5 grade
Effective measuring range Force from 1% to 100% (1 grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy The value ±1% / the value±0.5%
Tester resolution Max load 1/200000, constant the resolution
Load sensor Basic configuration sensor max load: one
Effective testing width 500mm (can be widened according to customers requirement )
Effective tensile space 700mm (can be increased the height according to customers requirement)
Testing speed From 0.001 to 500mm/min
Accruacy of displacement measurement Tolerance: ±0.5% / tolerance:±0.2%
Deformation of measured system according to the requirements

Min span:10mm, Max range of deformation 800mm

Extended deformation span : 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm

Accuracy of measured deformation Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)
Safety Electronic-limit protection
Testing platform moving device Arbitrarily set
Return Back Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%, automatic protection
Fixture A set of tensile clamp
Machine size 700*590*2000mm (L*W*H)
Motor Panasonic AC servo motor and drive
Power supply 220V,50HZ or according to the requirement
Power 1.5KW or 3KW (depending on different demand of force, using different motor)
Weight 600 Kg



Microcomputer Control Single-Armed Electronic Universal Testing Machine

It can automatic calculate the stress, rate of elongation(need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate

of elongation; Using computer to display the dynamic curves in the testing process and process the

data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics

processing module, printing reports, product performance reached the international advanced level.



Double Armed Computerized Tensile Testing Machine , Tensile Strength Test Equipment 0

System configuration

1 Machine main unit

1 1 AC servo motor, driver  1 set

1.2 Speed reduce system 1set

1. 3 Load cell 1pc

1. 4 Precision precision ball screw 2sets

1. 5 Control board 1set

2 Servo control system 1set

3 Gear system 1set

4 PC 1set

5 Inkjet color printer 1set

7 Tensile test accessories 1set

Compression accessorises 1 set

Bend accessorises 1 set

8 Extensometer 1 set

9 Software installation CD 1set

10 Technical documents 1set

including : Instruction Manual

Manual of the Software

Certificate

11 Tool kit 1 set
