Plastic Electronic Universal Testing Machine XWW-10KN Model 0.5% Accuracy Grade

Plastic Electronic Universal Testing Machine XWW-10KN Model 0.5% Accuracy Grade
Plastic Electronic Universal Testing Machine XWW-10KN Model 0.5% Accuracy Grade Plastic Electronic Universal Testing Machine XWW-10KN Model 0.5% Accuracy Grade

Large Image :  Plastic Electronic Universal Testing Machine XWW-10KN Model 0.5% Accuracy Grade

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XWW-
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 10~20 work days
Payment Terms: T/T
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: XWW-10KN Plastic Universal Tensile Testing Machine/Plastic Tensile Testing Machine Price Authentication: ISO9001 CE
Capacity: 10KN Accuracy: ±0.5%

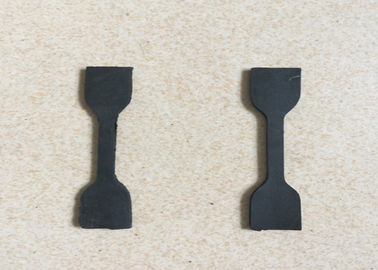

Sample Type: Dumbbell, Pants Type, Straight, Etc Sample Thickness: 0~7mm(can Be Customized)
Computer Control: Yes Package: Standard Export Wooden Cases
High Light:

universal tensile testing machine

,

computerized tensile testing machine

XWW-10KN Plastic Universal Tensile Testing Machine/Plastic Tensile Testing Machine Price



Description:

Plastic Universal Tensile Testing Machine/Plastic Tensile Testing Machine Price: for tensile, bending, peeling, compressing tests of metallic and non-metallic materials, such as rubber, plastic, PVC pipe, board, metal wire, cable, waterproof materials and film industry.

Plastic Electronic Universal Testing Machine XWW-10KN Model 0.5% Accuracy Grade 0

Technical parameter

Model XWW-10KN
Type floor model with single test space
Max. Load 10KN
Accuracy Grade 0.5%
Force-measuring Range 0.4%~100%FS
Force-measuring Accuracy ≤0.5%
Deformation-measuring Range 2%~100%FS
Deformation-measuring Accuracy 0.5%
Crossbeam Displacement Resolution 0.001mm
Crossbeam Speed Range 0.05-500mm/min
Displacement Speed Accuracy ≤ 0.5%
Test Width 400 Can be customized
Total Crossbeam Travel 1100mm Can be customized
Sample Size .25*7mm(wide*thick)Can be customized
Clamps Tensile jig
PC System Equipped with brand computer and color inkjet printer
Power Supply AC220V
Standards ISO7500-1, ISO5893,ISO9969, ASTMD638695790



Characteristics

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.

2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.

3. That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.





System configuration

1 Machine main unit

1 1 AC servo motor, driver  1 set

1.2 Speed reduce system 1set

1. 3 Load cell 10KN 1pc

1. 4 Precision precision ball screw 2sets

1. 5 Control board 1set

2 Servo control system 1set

3 Gear system 1set

4 PC 1set

5 Inkjet color printer 1set

7 Tensile test accessories 1set

Compression accessorises 1 set

Bend accessorises 1 set

8 Large extension extensometer 1 set

9 Software installation CD 1set

10 Technical documents 1set

including : Instruction Manual

Manual of the Software

Certificate

11 Tool kit 1 set
