Payment & Shipping Terms:
|Product Name:||Universal Testing Machine For Tensile Strength And Elongation||Alternative:||Tensioning Machine|
|Standard:||ISO 7500-1 ISO 572 ISO 5893 ASTM D638/695/790, Etc||Accuracy Grade:||0.5|
universal tensile testing machine,
computerized tensile testing machine

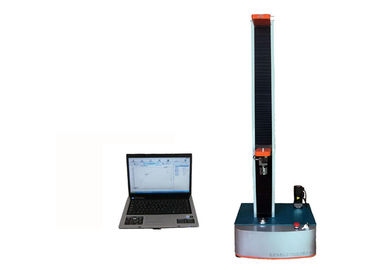

XWW-500N Universal Testing Machine For Tensile Strength and Elongation
Universal Testing Machine For Tensile Strength and Elongation is advanced testing machine model which adopt the computer close loop control and graphic display technology. The control software is base on the Mircrosoft Windows and has the both Chinese and English languages version. Computer controls the whole testing process; the software can get the test value by all kinds of sensor and using the software analyzing module, user can get all kinds of mechanics parameter such as tensile strength, elastic modulus and elongation ration automatically. And all test data and result can be saved to computer, also the system allow user to print the test report with curve and parameter.
The XWW series testing machine is widely used in the field of rubber, plastic, PVC pipe, board, metal wire, cable, waterproof materials and film industry. By using different kinds of accessories, it can do the test of tensile, compression, bending, shear, peeling, tearing and all other kinds of testing. This is a common testing equipment for all kinds of lab and quality control department to determine the material quality and mechanics analyzing.
Main technical parameter of Universal Testing Machine For Tensile Strength and Elongation:
|Unit Switchover||Tone,Kg,g,Kn,Lb; mm,cm,inch|
|Crossbeam Displacement Resolution||0.001mm|
|Crossbeam Speed Range||0.01~500mm/min|
|Displacement Speed Accuracy||≤ 0.5%|
|Compression Space||900mm (or according to order)|
|Clamps||Wedge Grip,Compressing Attachment,Bend accessorises|
|PC System||Equiped with brand computer|
Introduction of the UTM software:
Universal Testing Machine Software (more than the following)
Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
1 Machine main unit
1 1 AC servo motor, driver 1 set
1.2 Speed reduce system 1set
1. 3 Load cell 500N1pc
1. 4 Precision precision ball screw 2sets
1. 5 Control board 1set
2 Servo control system 1set
3 Gear system 1set
4 PC 1set
5 Inkjet color printer 1set
7 Tensile test accessories 1set
Compression accessorises 1 set
Bend accessorises 1 set
8 Large extension extensometer 1 set
9 Software installation CD 1set
10 Technical documents 1set
including : Instruction Manual
Manual of the Software
11 Tool kit 1 set
1. Life-long technical assistance and teaching video.
2. One year Warranty including free maintenance and changing Instrument components.
3. Future testing solutions consultation and laboratory free test, you can send samples to us, and we can test it for you.
4. Unbeatable prices we continuously strive to find ways of reducing our production costs, and passing the savings over to you!
5. Special offers in order to maintain our competitive edge, we are constantly running special offers on our promotion tester machine, consumer goods, and design services. Contact our sales team to see how we
can help you save money more.
