Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Lifting Sample Frame HDT Vicat Testing Machine For Deformation Temperature Testing | Test Stations: | 3 |
|---|---|---|---|
| Heating Rate: | 120±10℃/h 、 50±5℃/h | Maximum Temperature Error: | ±0.5℃ |
| Deformation Measurement Range: | -1.00～10.00mm | Span Of Sample Supports: | 64mm, 100mm |
| Maximum Deformation Measurement Error: | 0.001mm | Current Source: | 4KW, 220VAC, 50HZ |
| High Light: | Deformation Temperature HDT Vicat Testing Machine,Automatic Lifting HDT Vicat Testing Machine,Sample Frame HDT Vicat Testing Machine |
||
In order to adapt to the rapid development of the plastics industry and improve the research and testing level of materials, the latest international and national standards are adopted: ISO75-1:1993 "Plastics - Determination of Deformation Temperature under Load", ISO306:1994 "Plastics - Thermoplastic Vicat Designed by "Determination of Softening Point Temperature", GB/T1633-2000 "Determination of Vicat Softening Point Temperature of Thermoplastic Plastics", GB/T1634-2001 "Plastics - Determination of Deformation Temperature under Load", it is widely used in plastic chemical enterprises and Research institutions.

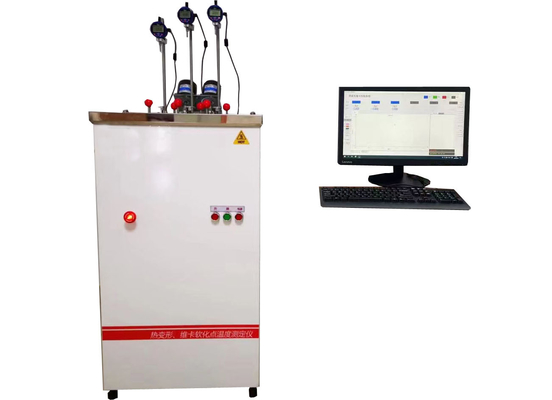

The testing machine is controlled by PC, with deformation measurement by digital micrometers, real-time curve drawing, test data directly on PC for the secondary processing, test data can be imported into OFFICE software for editing and typesetting. Automatic lifting of the sample frame.
It adopts a constant-speed heating algorithm and integrates real-time temperature data and historical temperature data to comprehensively calculate the heating control data and adjust it in real time, making the heating rate very linear. Basically, the heating value in every minute is a standard value. If the ambient temperature, If the voltage fluctuates and affects the real-time temperature value, it will automatically adjust to the standard rate in a short period of time. It has a temperature alarm function and stops heating control at the same time.ensure safety.The instrument is equipped with three ways to end the test, 1 is to reach the displacement, 2 is to reach the upper temperature limit, 3 is to end manually, and is equipped with constant temperature preheating, expansion coefficient adjustment and other functions to make the test faster, the results more accurate, and the test results can be Save and print; equipped with computer software, you can view the temperature curve generated during the heating process and print test reports.The instrument is equipped with 3 workstations as standard.Multi-station models can be customized for users.
Standards adopted:
ISO75-1 "Plastics - Determination of Deformation Temperature under Load"
ISO306 "Plastics - Determination of Vicat Softening Point Temperature of Thermoplastic Plastics"
GB/T1633-2000 "Determination of Vicat Softening Point Temperature of Thermoplastic Plastics"
GB/T1634-2001 "Plastics - Determination of Deformation Temperature under Load"
GB/T8802 "Determination of Vicat Softening Temperature of Thermoplastic Pipes and Fittings"
ASTM D 1525-1991 Test Method for Vicat Softening Temperature of Plastics ASTM D648-06 Determination of Vicat Softening Temperature of Plastics under Flexural Load Test method for deflection temperature
Technical Parameter:
| Temperature control range | Room temperature ～300℃ |
| Heating rate | 120±10℃/h , 50±5℃/h |
| Maximum temperature error | ±0.5℃ |
| Temperature measurement point | 1 |
| Test stations | 3 stations |
| Test frame lifting mode | Automatic rising-lowering |
| Formal measurement measuring tool | Digital display dial gauge |
| Deformation measurement range | -1.00～10.00mm |
| Span of sample support | 64mm and 100mm |
| Maximum deformation measurement error | 0.001mm |
| Thermal expansion coefficient of specimen holder | <0.005mm/100℃ |
| Heating medium | Methylsilicone oil |
| Cooling method | ＞150℃ Natural cooling, ≤150℃ water cooling or natural cooling |
| Temperature protection | Can stop heating automatically when test temperature reaches the upper limit. |
| Equipment size |
870mm×570mm×1420mm |
| Current source | 4.0KW, 220VAC, 50HZ |
Support and Services:
HDT VICAT Testing Machine provides a wide range of technical support and services to ensure peak performance and maximum uptime. We offer on-site installation services, operator training, preventive maintenance, and troubleshooting assistance.
Installation and SetupOur experienced technicians will install and setup the HDT VICAT Testing Machine at your site and provide operator training.
Preventive MaintenanceWe offer scheduled preventive maintenance services to ensure the optimal performance of the HDT VICAT Testing Machine.
Troubleshooting AssistanceWe provide troubleshooting assistance to help you identify and resolve any issues with the HDT VICAT Testing Machine.
Packing and Shipping:
The HDT VICAT Testing Machine is packed in a wooden box to ensure that it is safe and secure during transport. The wooden box is lined with bubble wrap and foam to protect the machine from any external damage. The machine is then sealed with a plastic wrap to protect it from moisture. The box is then labeled with the exact contents of the package so that it can be easily identified. The machine is then shipped using a reliable carrier such as UPS or FedEx.
FAQ:
