Product Details:
Payment & Shipping Terms:
|
| Product Name: | ISO179 Charpy Impact Tester Impact Resistance Test Equipment | Model: | XJJD-50M |
|---|---|---|---|
| Capacity(J): | 7.5, 15, 25, 50 | Impact Velocity Range: | 3.8 M/s |
| Energy Unit: | J, Kgmm, Kgcm, Kgm, Lbft, Lbin | Preraised Angle: | 150±1° |
| Strike Center Distance: | 395mm | Measuring Angle Accuracy: | 1’ |
| High Light: | ISO179 Charpy Impact Tester,ISO179 charpy impact test machine,high accuracy charpy impact test machine |
||

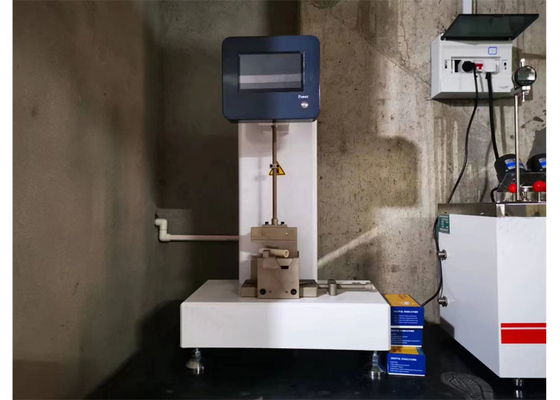

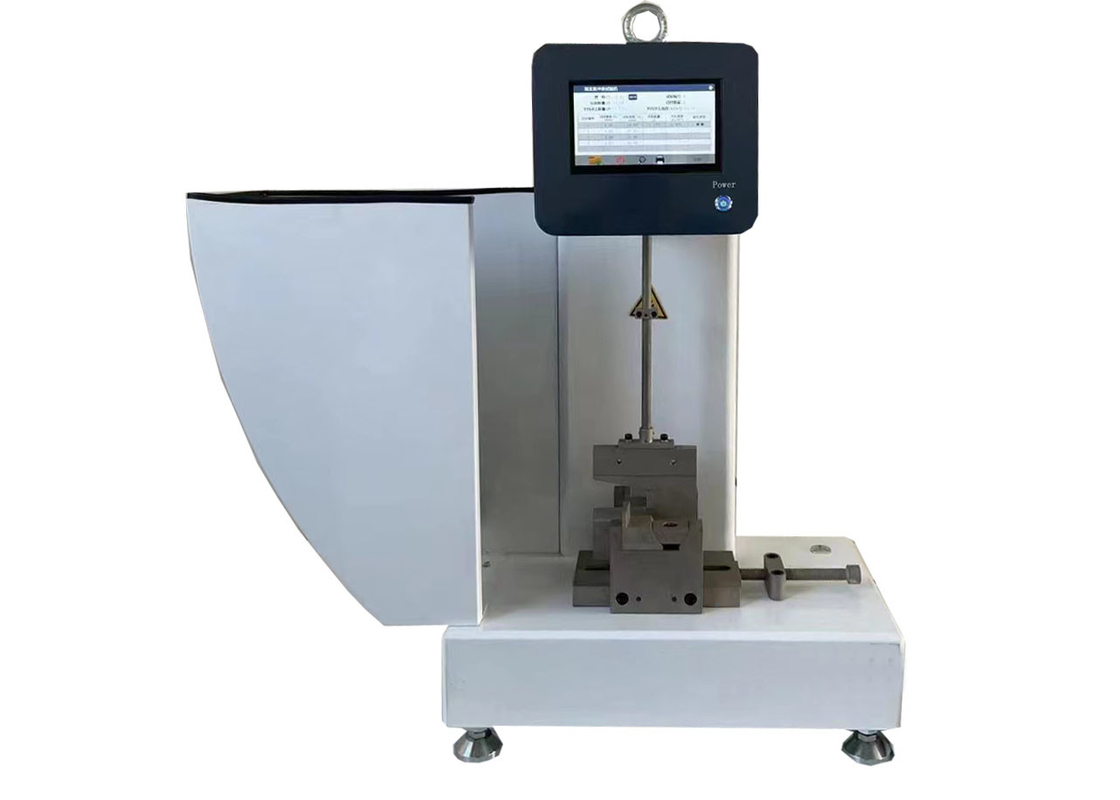

Digital charpy impact testing machine is mainly used in hard plastic, reinforced nylon, glass fiber reinforced plastic, ceramic, cast stone, electrical insulating materials of nonmetal materials to the determination of impact toughness.Is the chemical industry, scientific research units, colleges and universities, quality inspection departments such as the ideal test equipment.
Working Principle:
Strike the sample supporting the horizontal beam with the pendulum hammer of known energy, and destroy the sample by one shock of the pendulum hammer. The impact line is located in the middle of the two supports, to impact the energy difference between the pendulum before and after, to determine the energy absorbed by the sample when destroyed. The impact strength is then calculated according to the original cross-sectional area of the sample.
Instrument characteristics:
1. The instrument adopts high hardness and precision bearings, and adopts a single axis photoelectric sensor to fundamentally eliminate the loss caused by friction, ensuring that the friction energy loss is far less than the standard requirements.
2. Based on the impact situation, intelligently prompt the working status, interact with the experimenter at all times, and ensure the success rate of the test.
Meet standards:
ISO179-2000 "plastics - determination of impact strength of the simply supported beam with hard material,
GB/T1043-2008 "the hard plastic beam impact test method"
GB/T 18743-18743 "with thermoplastic fluid conveying pipe beam impact test method" (applicable to pipe)
JB/T8762-1998 plastic beam impact testing machine,
Technical parameter:
| Impact velocity | 3.8m/s |
| Impact energy | 7.5J,15J；25J,50J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 395mm |
| Pendulum moment |
T7.5=4.0192Nm, T15=8.0384Nm, T25=13.3974Nm, T50=26.7949Nm |
| Clip spacing | 60mm 70mm 62mm 95mm |
| Impact blade round Angle | R2mm±0.5mm |
| Measuring Angle Accuracy | 1’ |
| Precision | 0.05% of the indicated value |
| energy unit | J, kgmm, kgcm, kgm, lbft, lbin |
| Temperature | -10℃～40℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz |
| Weight | 120KG |
The Impact Testing Machine is used in various applications, such as:
For the packaging of our Impact Testing Machine, we use high-quality materials to ensure the safety and protection of the product during transportation. The machine is first wrapped in a layer of bubble wrap and then placed in a sturdy cardboard box. The box is then sealed with strong tape to prevent any damage during shipping.
The dimensions and weight of the package will vary depending on the specific model of the Impact Testing Machine. However, we make sure that the package is compact and lightweight to reduce shipping costs.
For international shipping, the machine will be placed in a wooden crate for extra protection. All necessary shipping documents and labels will be included in the package.
We work with reliable and efficient shipping carriers to ensure timely and safe delivery of our Impact Testing Machine. Customers can also choose their preferred shipping method and we will do our best to accommodate their requests.
Upon receiving the package, customers are advised to carefully inspect the product for any damages. In case of any issues, please contact our customer service team immediately for assistance.
A: The brand name of this product is JHH.
A: The model number of this product is XJJ.
A: This product is manufactured in Beijing, China.
A: This product is certified with ISO and CE.
A: The minimum order quantity for this product is 1 set.
