Product Details:
Payment & Shipping Terms:
|
| Product Name: | LCD Display Pipe Tube Drop Hammer Test Machine Drop Falling Weight Impact Tester | Travel Of Working Table: | 12-450mm |
|---|---|---|---|
| Specimen Diameter: | φ12~450mm | Hammer Diameter: | D25, D90, R5, R10, R30, R50 Can Optional |
| Hammer Weight: | 0.5kg-8kg | Height Of The Fall: | 30mm-2000mm，error≤±2mm |
| Outline Dimension: | 710mm×720mm×3660mm | Net Weight: | 315kg |
| High Light: | lcd drop hammer test machine,drop hammer test machine manufacturers,lcd deflectometer test |
||

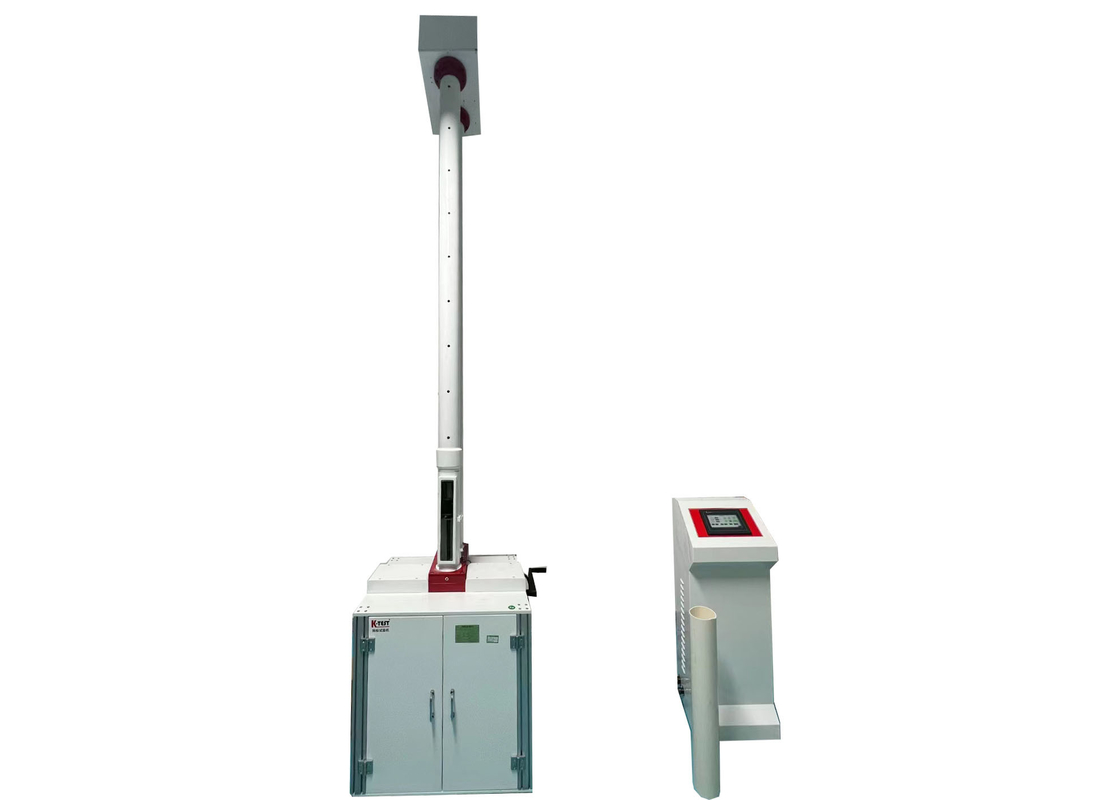

LCD Display Pipe Tube Drop Hammer Test Machine Drop Falling Weight Impact Tester
Summary:
LCD Display Pipe Tube Drop Hammer Test Machine Drop Falling Weight Impact Tester is suitable for the determination of the external impact resistance of various pipes (supply pipes, sewage pipes, low-pressure water pipes, low-pressure water pipes, core foam pipes, double-wall corrugated pipes, etc.
Meet criterions:
ASTM D2444, ISO4422, ISO3127, BSEN1411, BSEN744, JB/T9389,GB/T14152,GB/T14153,GB/T6112,GB/T5836,GB/T10002.1,GB/T10002.3,GB/T13664,GB/T16800,GB/T1847.
The characteristics of the equipment:
Third level protection:
● Level 1 sample cabin door safety protection;
● Safety protection for secondary observation windows and doors (not added temporarily);
● Third layer upper and lower limit safety protection.
Rapid improvement:
Using a high torque stepper motor, the lifting speed can reach 250mm/second, and the fastest time from zero to 2 meters is 8 seconds.
Intelligent hovering:
This machine adopts a multi-level speed control program to ensure that the hammer stops smoothly and the control position has no deviation.
Exhaust pipe design:
The drop hammer pipe adopts 3D modeling to increase exhaust holes and reduce wind resistance. At the same time, the maintenance structure of the pipeline has been increased to prevent damage and deformation of the pipeline.
Pneumatic capture hammer, pneumatic release hammer:
Abandoning traditional electromagnetic hammers and iron hammers, adopting pneumatic structures with high force values, using 300N long stroke dual cylinder hammers, and using beef tendon plates on the hammer surface, the hammer head is stable and undamaged; The hammer head also adopts a pneumatic structure, fundamentally solving the problems of cable bending and leakage. Pneumatic adopts a pneumatic automatic locking structure, which is safe and reliable.
Integration and modular assembly:
The mechanical part adopts a standard aluminum alloy profile assembly structure, while the electrical part adopts a 7-inch touch screen and Delta PLC, achieving the characteristics of process standardization, modular installation, light structure, and high strength.
Excellent quality:
All equipment is imported, using Adker brand cylinders, Delta brand touch screens, Delta brand PLCs, and Taiwan Mingwei brand power supplies. All electrical, mechanical, and software components have appropriate safety measures in place. Such as anti leakage, anti short circuit, anti static, anti interference, anti leakage, anti power outage, anti misoperation, etc.
High degree of automation:
This instrument can automatically grasp the zero point and perform automatic hammering, automatic hammering, and automatic detection.
Technical parameters:
| Model | XJL-450M |
| Ambient temperature | 10℃-35℃ |
| Drop hammer quality | 0.5kg-6kg |
| Hammer diameter | D25mm,D90mm(can customized) |
| Height of the fall | 20mm-2000mm,error≤±2mm |
| Diameter of the sample | Φ16mm-Φ450mm(can customized) |
| Deviation of impact center from fixture center | ≤2mm |
| V-type supporting | 120° |
| source | 220VAC±10% |
| Outline dimension | 710mm×720mm×3660mm |
| Net weight | 315kg |
Configuration list:
| Name | Quantity |
| Host | One set |
| Electric cabinet | One set |
| The hammer body | One set |
| Power line | One piece |
| V-type supporting | Two pieces |
| Operating tool(wrench) | One set |
