| Product Name: | LCD Display Plastic Melt Flow Index Tester/MFI Testing Machine/Plastic Melt Flow Index Price | Temp.range: | 50-400℃ |
|---|---|---|---|
| Temperature Accuracy: | ±0.2°C | Temperature Resolution: | 0.1°C |
| Load: | All 5kg(can Choose 21.6kg) | Time Range: | 0.1~999s |
| The Diameter Of The Mold: | 2.095±0.005 Mm | Cutting: | Auto |
| Packing Size And Weight: | 0.65*0.75*0.7M3，80KG | Power Supply: | AC 220V/50Hz |
| High Light: | lcd plastic melt flow index tester,220v plastic melt flow index tester,lcd display mfi testing machine |
||

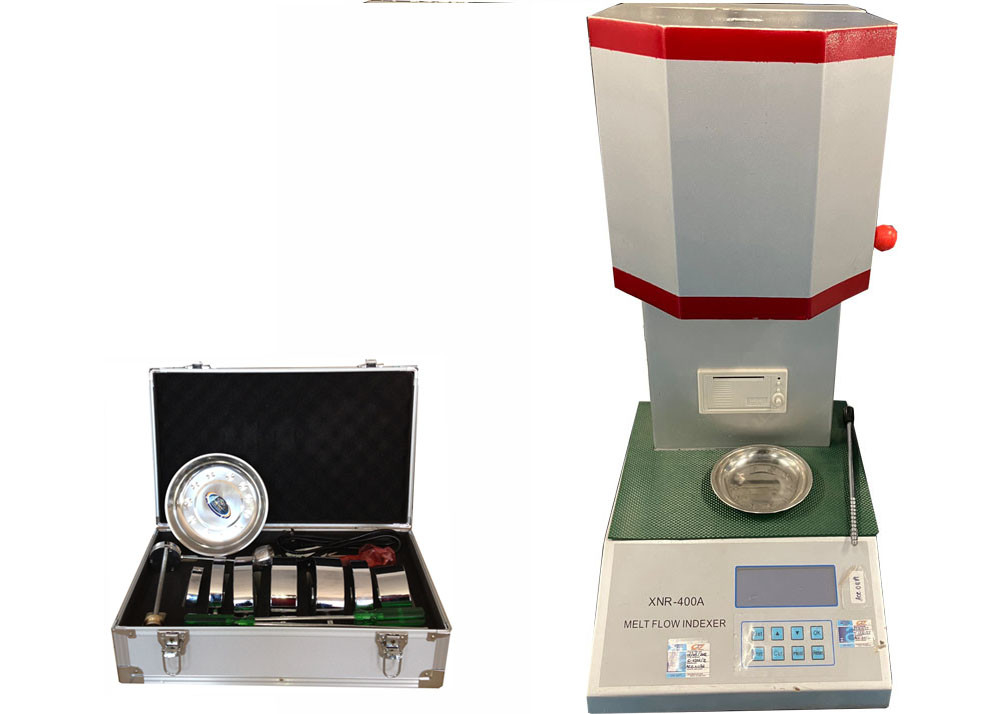

LCD Display Plastic Melt Flow Index Tester/MFI Testing Machine/Plastic Melt Flow Index Price
Product Description:
LCD Display Plastic Melt Flow Index Tester/MFI Testing Machine/Plastic Melt Flow Index meet GB/T3682-2000, ASTM D1238-98, JB/T5456 and ISO1133 standards.
It used to determination of the melt mass flow rate of thermoplastics.
Using automatic sampling to determination of melt mass flow rate, balance weighing way; then calculate mass flow rate according to the formula.
The final result of measurement is displayed on the LCD screen and can output by the micro-printer.
Principle:
The melt mass-fiow rate (MFR) is determined by extruding molten material from the barrel of a plastometer under preset conditions of temperature and load. For meit mass-fow rate, timed segments of the extrudate are weighed and the extrudate rate is calculated in g/10 min and recorded.
Technical Parameters:
| Model No. | XNR-400A |
| Measuring Method | MFR |
| Display&Print | LCD, Results printed by inner printer |
| Warranty | 1 years on heating jacket |
| Cutting | Auto |
| Temperature range | 50-400oC |
| Test load (Eight grades) | 5kg(can choose 21.6kg) |
| Controlled Accuracy | ±0.2oC |
| Display Resolution | 0.1oC |
| Measuring Range | (0.1~150)g/10min (0.01~150)cm3/10min |
| Timing of the clock resolution | 0.1S |
| Power Supply | 220V 550W |
| Packing size and weight | 0.65*0.75*0.7M3,80KG |
Meet standards:
GB3682, ISO1133, JB/T5456, ASTM D1238, ASTM D3364
Support and Services:
Melt Flow Index Tester Technical Support and Service
We provide technical support and service for all Melt Flow Index Testers. Our technical support team is available via phone, email and online chat 24/7 to answer any questions or concerns you may have. We provide detailed instructions and videos to help you get the most out of your Melt Flow Index Tester.
We also offer a variety of warranty plans and service contracts to keep your Melt Flow Index Tester in top working condition. Our warranty plans cover defects in materials and workmanship for up to 5 years. Our service contracts include on-site maintenance and repairs, as well as the replacement of any parts that are found to be defective.
If you have any questions or concerns about our Melt Flow Index Tester technical support and service, please do not hesitate to contact us.
Packing and Shipping:
The Melt Flow Index Tester is shipped in a sturdy cardboard box, filled with foam to protect the instrument during transit. All accessories are sealed in their own plastic bags and placed in compartments in the box. The box is then sealed with tape that indicates that the instrument has been tested and is ready for use.
When shipping the Melt Flow Index Tester, please ensure that the box is properly sealed and that the packaging is clearly marked with the destination address. The instrument should be shipped using a reliable courier service that offers tracking and insurance.
FAQ:
Q1: What is a Melt Flow Index Tester?
A: The Melt Flow Index Tester, produced by JHH, based in Beijing, China, is a testing instrument used to measure the melt mass-flow rate of thermoplastics.
Q2: What is the purpose of the Melt Flow Index Tester?
A: The Melt Flow Index Tester is used to measure the melt mass-flow rate of thermoplastics, which provides important information for the quality control of plastic materials.
Q3: What kind of thermoplastics can be tested with the Melt Flow Index Tester?
A: The Melt Flow Index Tester can test a wide range of thermoplastics such as polyethylene, polypropylene, ABS, etc.
Q4: What are the features of the Melt Flow Index Tester?
A: The Melt Flow Index Tester has a wide range of features, including a digital display, a data storage function, a user-friendly interface, and a compact design.
Q5: What are the advantages of using the Melt Flow Index Tester?
A: The Melt Flow Index Tester is accurate and reliable, and it can quickly provide important data on the quality of plastic materials. It also has a user-friendly interface and a compact design, making it easy to use and convenient to transport.
