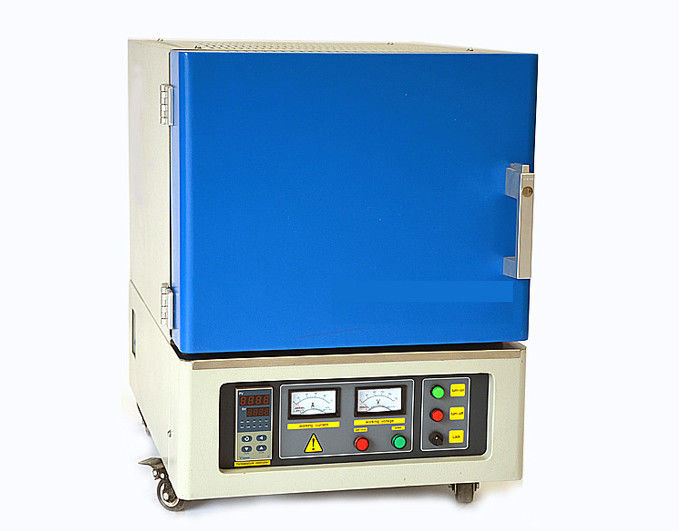

| Product Name: | 7.2L High Temperature Laboratory Muffle Furnace 1200 C | Model: | SX2-3-12TP |
|---|---|---|---|
| The Highest Temperature: | 1200℃ | Using Temperature: | 100-1100℃ |
| Control Precision: | ±1℃ | Furnace Material: | Light Alumina Ceramic Fiber |
| The Sensor Type: | K | Furnace Size(mm): | 300*200*120（D*W*H） |
| High Light: | laboratory muffle furnace 1200 c,high temperature muffle furnace 1200 c,7.2L muffle furnace 1200 c |
||
Box –type muffle furnace is dedicated to laboratories or universities and research institutes, also special equipment for industrial and mining enterprises, to sintering, melting analysis metals, non-metallic compounds and other materials.
Products widely used in enterprises and scientific research units and small batch production, teaching and research institutions involved in the ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, development of new materials, specialty materials, building materials and other fields.
1) 1200℃ maximum operating temperature
2) Heating element is resistance
3) Low thermal mass insulation for fast response & energy efficiency
4) Shell structure: double shell structure with air-cooled system to ensure the furnace shell close to room temperature when the equipment is running and avoid accidents
5) Temperature control safety: with over-temperature protection; broken even protection; leakage protection;equipment operation safe and reliable
6) Chamber material: alumina ceramic blank module to ensure uniform temperature field and good insulation properties
7)30 segment program temperature control intelligent PID adjustment;with fuzzy control and instrument self-tuning function; automatic heating;automatic cooling
8)Single controller cabinet.
The temperature controller Technical parameters
| The control mode | Single point program control |
| Apply to power supply | AC 220V |
| Number of steps | 1 |
| Control precision | ±1℃ |
Technical parameters
| The furnace model | 7.2L |
| Temperature rise time | 100-1100℃ about 30min |
| Using temperature | 100-1100℃ |
| Power source | AC 220V |
| power(KW) | 3 |
| Heating element type | Resistance wire |
| The sensor type | K |
| Furnace size(mm) | 300*200*120(D*W*H) |
| Overall dimension(mm) | 700*470*570(D*W*H) |
Standard working size
| 100*100*100mm |
| 300*200*200mm |
| 400*300*300mm |
| 500*500*500mm |
| 600*600*600mm |
,
