Product Details:
Payment & Shipping Terms:
|
| Product Name: | Universal Testing Machine / Lab Equipment Tensile Universal Testing Machine | Authentication: | ISO9001 |
|---|---|---|---|
| Standards: | GB/T1040\1041\9341\8804\9647\17200, GB/6491, ISO7500-1, ISO5893, ASTMD638\695\790 | Force-measuring Accuracy: | ≤1% (special Order≤0.5%) |
| Deformation-measuring Range: | 2%~100%FS | Deformation-measuring Accuracy: | 1% (special Order 0.5%) |
| Resolution: | 1/300,000 | Stroke: | 700mm(excluding Clamp) |
| High Light: | compressive strength testing machine,universal tensile testing machine |
||

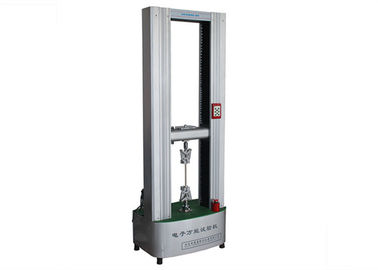

Universal Testing Machine / Lab Equipment Tensile Universal Testing Machine
Universal Testing Machine / Lab Equipment Tensile Universal Testing Machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Product Description of Universal Testing Machine / Lab Equipment Tensile Universal Testing Machine
| Model | XWW-D | ||
| Type | floor model with double test space | ||
| Max. Load | 100N200N500N1KN2KN5KN10KN20KN50KN100KN200KN300KN | ||
| Accuracy Grade | 1% (special order 0.5%) | ||
| Force-measuring Range | 2%~100%FS (special order 0.4%~100%FS) | ||
| Force-measuring Accuracy | ≤1% (special order≤0.5%) | ||
| Deformation-measuring Range | 2%~100%FS | ||
| Deformation-measuring Accuracy | 1% (special order 0.5%) | ||
| Crossbeam Displacement Resolution | 0.001mm | ||
| Crossbeam Speed Range | 0.01~500mm/min(or according to order) | ||
| Displacement Speed Accuracy | ≤ 0.5% | ||
| Testing Width | 400mm (or according to order) | ||
| Total Crossbeam Travel | 600mm (or according to order) | ||
| Clamps | Many types for option | ||
| PC System | Equipped with brand computer and color inkjet printer | ||
| Power Supply |
AC220V;400w (100N200N500N1KN2KN5KN) |
AC220V; <1.5KW (10KN20KN50KN) | AC380V;3.0KW(100KN200KN300KN) |
| Standards | GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790 | ||
Introduction of the UTM software---- Universal Testing Machine / Lab Equipment Tensile Universal Testing Machine
Universal Testing Machine Software (more than the following)
This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.
Based on Windows, simple operation and easy to learn.
Languages switch between Simplified Chinese, traditional Chinese and English.
Ten user accounts and passwords can be created.
It has the protection function of overloading: overloading value can be set by user.
The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.
Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.
Force value dual-correction system: auto set and zero, auto identification and import of correction data.
It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.
Compare among the test curves in the same group though piling them up.
Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.
Packaging & Shipping
| Packaging Details: | Composite Material Box |
| Average Lead Time: | 20 Day(s) |
| Minimum Order Quantity: | 10 Pieces |
| Accepted Payment Type: | T/T, L/C, D/P D/A, Western Union |
| Port: | Tianjin |
| Accepted Delivery Terms: | FOB, CFR, CIF |
| Accepted Payment Currency: | USD |
| Export Mode: | Have Own Export License,Export License Number: 01213606 |
