ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine

China Beijing Jinshengxin Testing Machine Co., Ltd. certification
China Beijing Jinshengxin Testing Machine Co., Ltd. certification
popular Electronic Universal Testing Machine products

—— tom

I'm Online Chat Now

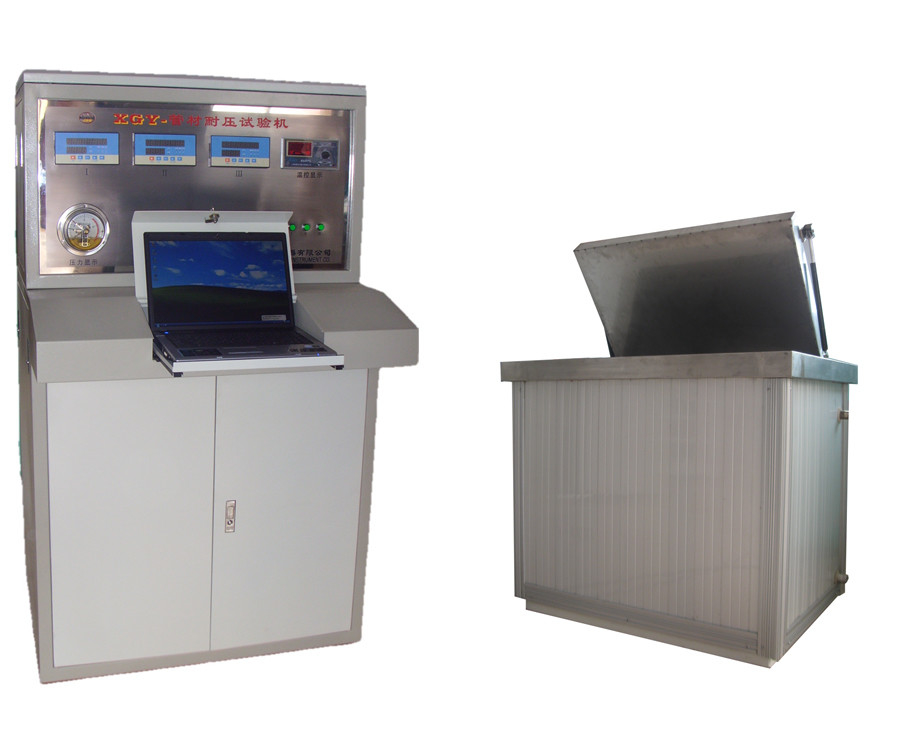

ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine

ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine
ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine

Large Image :  ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine

Product Details:
Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XGY-10B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden cases
Delivery Time: 7 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Place Of Origin: Beijing, China Product Name: Plastic Pipe Hydrostatic Pressure Tester Comply With ASTM F1335 & ISO 1167
Model: XGY-10B-Ⅲ Max. Pressure: 10 MPA, 100BAR, 100KG/CM2, 1450PSI
Pressure Resolution: 0.001MPa, 0.01BAR, 0.01KG/CM2, 0.145PSI Test Stations: 1, 2, 3, 4, 5, 6, 8, 10, 12 Or Other
Temp. Range: 15-95 ℃ Constant Pressure Accuracy: -1%, +2%
Power: AC380V ±10% ,50/60Hz Certificate: ISO, CE
High Light:

astm f1335 hydrostatic pressure testing machine

,

iso 1167 hydrostatic pressure testing machine

,

astm f1335 hydrotest machine


Plastic Pipe Hydrostatic Pressure Tester Comply With ASTM F1335 & ISO 1167
Ⅰ. Application:

Thermoplastics Pipes Hydrostatic Pressure Tester is mainly used to determine the resistance of thermoplastics pipes or short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastics pipes intended for the conveyance of fluids.


Ⅱ. Technical data:
Pressure range of the main engine0~10mpa (adjust at random)
Control range of water tankRt~95℃
Pressure resolution of main engine0.001mpa
Temperature control accuracy of water tank±0.5℃
Constant pressure range of main engine<+2%,-1% of the set value
Temperature uniformity of the water tank±0.5℃
Constant pressure accuracy of main engine≤±1%
Temperature resolution of water tank0.1℃
Timing range0~9999.59 hours
Timing accuracy≤0.1%
Water tankThe material is stainless steel
Insulating layer thickness of the water tankThicker than 83mm,thinner than 95 mm
Test stations50 roads at most for single machine
Power supply of pressure control systemAc220v,1.5kw
Power supply of temperature control systemAc380v,18kw


Ⅲ​Standard accessory

1. Pressure control system;
2. Temperature control system;
3. Constant temperature tank;
4. End caps;
5. Refrigeration system;
6. PC, printer, software, manual etc.

Ⅳ​. Features
Features of main frame
1. Meter and computer docuble controll.
1. Continuous barrier-free work to ensure the integrity of the test.
2. Easy to operate and maintain for branch stations are independent from each other.
3. Main components are imported from Europe or America, which are stable and reliable.
4. On the basis of the meters, the instrument is also equipped with brand laptop or desktop which is connected with the meters by serial ports.
5. Pressure-time curve and Pressure-temperature curve can be drawn.
6. Pressure value can be inquired real-time.
7. Automatic regulate the pressure on the computer.
8. Test reports can be printed.
9. Computer can stop working at any time, because the meters of the main frame can still work.
10. The PC is installed with the latest version of hydrostatic pressure test software in Chinese or English which are free to upgrade for life long.
ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 0

 End caps:
1. Include bolt, O ring ,vent valve etc all assembled complete.
2. Fixture structure:
Half round pot form,easy fit out , no leakage, convenient operation.
3. With stainless steel material and Carbon steel sparying plastic
Match the pipes with different diameter
(Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630, Φ710, Φ800, Φ900, Φ1000, Φ1200, Φ1400, Φ1600mm etc.)



Refrigerating system optional

1. The test tank can be connected with refrigerating machine to perform low-temperature.
2. Test temperature can be RT-95℃ or 15~95℃.

ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 1



ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 2


ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 3ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 4

ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 5ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 6ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 7
ASTM F1335 ISO 1167 Hydrostatic Pressure Testing Machine 8
