Sealing Hydrostatic 710mm Plastic Pipe End Caps 2 Mpa

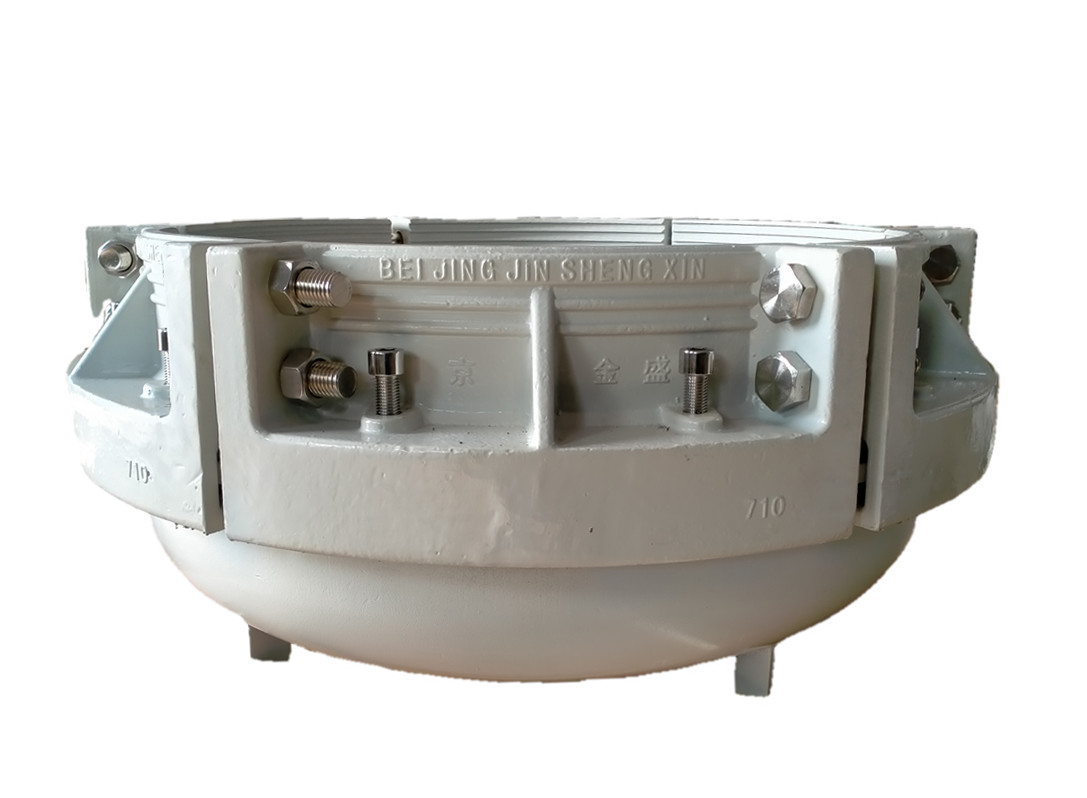

Large Image : Sealing Hydrostatic 710mm Plastic Pipe End Caps 2 Mpa

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	DN 710mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Place Of Origin:	Beijing, China	Product Name:	Fittings For Pipe (End Closures/End Caps) For Sealing Pipe In Hydrostatic
Model:	DN 710mm	Max. Pressure:	2 MPA
Material:	304# Stainless Steel /Carbon Steel	Temp. Range:	15-95 ℃
Weight:	150KG(single)	Techniques:	Casting
Highlight:	hydrostatic plastic tube end caps , 710mm plastic pipe end caps , plastic pipe end caps 2 mpa

Fittings for pipe (End Closures/End Caps) for sealing pipe in hydrostatic:

Use:

Used for sealing pipe in hydrostatic –pressure of U- PVC pipe and HDPE pipes as per ISO 1167, ASTM D1598, ASTM D1599. .

Constrction:

The end caps include base, silicone seal, connection bolts, sealing pressure plate, fastening clamp

Sealing pressure plate fastening screws.Medium overload is provided on the clamture base

hole; fastening clamp processed on the inside of the claw.

Technical Specification:

Material: 304# Stainless Steel /Carbon Steel

Techniques: Casting

Max. Pressure: 2 MPa

Temp. range: 15-95 ℃

Outline dimension: Φ850*465mm(single)

Weight: 150KG(single)

Shape/Structure: Half Round pot form, easy fit out, no leakage and

Convenient operation.

Sealing Hydrostatic 710mm Plastic Pipe End Caps 2 Mpa 0

Sealing Hydrostatic 710mm Plastic Pipe End Caps 2 Mpa 1

Sealing Hydrostatic 710mm Plastic Pipe End Caps 2 Mpa 3
