Thermoplastics Melt Index Tester , Automatic / Manual Cut MFI Testing Machine

I'm Online Chat Now

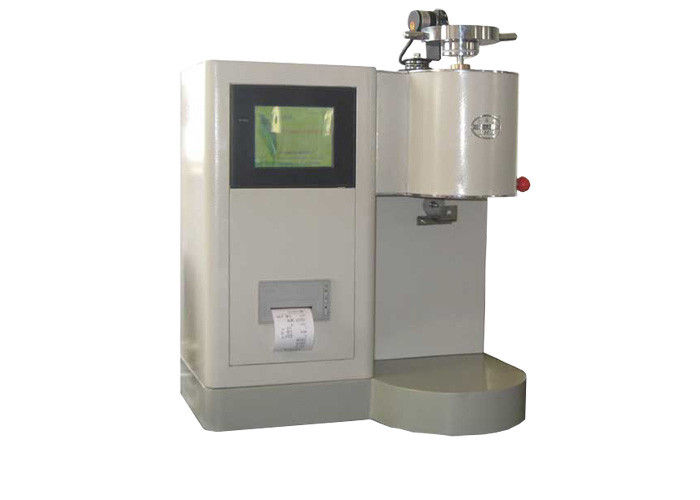

Thermoplastics Melt Index Tester , Automatic / Manual Cut MFI Testing Machine

China Thermoplastics Melt Index Tester , Automatic / Manual Cut MFI Testing Machine supplier

Large Image :  Thermoplastics Melt Index Tester , Automatic / Manual Cut MFI Testing Machine

Product Details:

Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XNR-400C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1230~1385 USD
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: XNR-400C Plastic Metal Flow Indexer(MFI)tester- Thermoplastics MFR&MVR Tester Test Method: MFR & MVR & Density
Standard: ISO1133, ASTM D1238, ASTM D3364 Display: Color Touch Screen
Cut Material Way: Automatic Or Manual Cut Material Way All Weight: 21.6Kg
Temperature Resolution: 0.1°C Thermostat Range: Room Temperature - 400 ° C

XNR-400C Plastic metal flow indexer(MFI)tester- Thermoplastics MFR&MVR tester

Application:
XNR-400C Plastic metal flow indexer(MFI)tester- Thermoplastics MFR&MVR tester is accordance to ISO1133;GB3682 2000,ASTM D1238.
It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic
productions, widely used in factories, products quality testing station, scientific and research
institutes, and concerned industries.



Feasurres:

1. Quick heating speed, minimal overshoot

2. High constant temperature accuracy

3. After stuffing, can be restored quickly constant temperature state

4. Easy to calibrate and correct the test parameters

5. Can be manual, automatic cropping test method

6. Chinese & English LCD

7.Eequipped with a printer, the test results are automatically printed out



Parameter:

Type XNR-400C
Squeeze out the part of material
Discharge port diameter Φ2.095±0.005mm
The length of the discharge port 8.000±0.025mm
Loaded barrel diameter Φ9.550±0.025mm
Loaded barrel length 152±0.1mm
The diameter of the piston rod head 9.475±0.015mm
The length of the piston rod head 6.350±0.100mm
1, Standard Test load (eight)
0.325kg = (piston rod + weight tray + insulation sleeve + weight body)
1.200 kg = (0.325 +2 No. 0.875 weight)
2.160 kg = (0.325 + 1.835 weight)
3.800 kg = (0.325 +4 3.475 weight)
5.000 kg = (0.325 +5 No. 4.675 weights)
10.000 kg = (0.325 +5 No. 4.675 weight + 5.000 weight)
12.500 kg = (5.000 +7 2.500 0.325 +5 4.675 weight +6 weights)
21.600 kg, = (0.325 +2 No. 0.875 + 1.835 )
Measurement MFR and MVR
Thermostat range Room temperature - 400 ° C
Temperature accuracy ±0.2°C
Temperature resolution 0.1°C
Timing range 0.1-999 s
Timing accuracy 0.1s
Cut material way Automatic or manual cut material way
Display Color touch screen
Print Can print the test report
Working conditions Ambient temperature of 10 ° C -40 ° C; Relative humidity of 30% -80%
Instrument Dimensions 4500×400×610(L × W × H)
