Manual Rockwell Digital Hardness Tester 10kgf / 98.07N Initial Test Force

I'm Online Chat Now

Manual Rockwell Digital Hardness Tester 10kgf / 98.07N Initial Test Force

China Manual Rockwell Digital Hardness Tester 10kgf / 98.07N Initial Test Force supplier

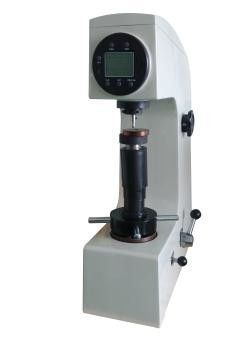

Large Image :  Manual Rockwell Digital Hardness Tester 10kgf / 98.07N Initial Test Force

Product Details:

Place of Origin: China
Brand Name: JINHAIHU
Certification: ISO 9001
Model Number: HR-150A
Contact Now
Detailed Product Description
Product Name: HR-150AS Manual Digital Rockwell Hardness Tester Initial Test Force: 10kgf(98.07N)
Test Force: 60kgf(588N) 100kgf(980N) 150kgf(1471N) Rockwell Scale: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK
Loading And Unloading: Manual Data Output: Digital Display
Outline Size (mm): 466×238×630mm Host Weight: About 65kg

Manual digital Rockwell hardness tester(HR-150AS)



Manual Rockwell hardness tester is stable and reliable performance, Rockwell machine universal type.

The mechanical and manual testing, without power supply;

Wide application range, convenient operation, good economy and practicality.



The main functions and features:

1, direct read the hardness, through the digital display screen resolution 0.1, the measured results is higher than the national standard;

2, can be directly HV, the hardness of HB unit conversion;

3, low power consumption, long service time, digital display using cr2450 battery;

4, with time display function;

5, with data output function, can be the computer or tandem micro printer;

6, forming a casting shell by special foundry and stable structure deformation, can work under severe environment; high grade automobile paint, anti scratch ability, used for many years is still as bright as new;

7, we have developed the design, production and processing capacity the machine, we provide lifelong replacement parts and maintenance services;



The main purpose and scope:

1, hardened steel, Quenched and tempered steel, annealed steel, bearing steel, strip steel, hardened steel sheet, hard alloy etc.;



technical parameter:

Product model HR-150AS
Initial test force 10kgf(98.07N)
Test force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK
Test range HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Loading and unloading Manual
data output Digital display
Implementation standards GB/T230.1 GB/T230.2 national standard JJG112 verification regulation
Maximum height of specimen 170mm
Distance between indenter and outer wall 135mm
Outline size (mm) 466×238×630mm
Host weight About 65kg

Accessory

Name Quality Name Quality
Diamond Rockwell indenter 1only Diameter 1.5875mm ball indenter 1only
Hardness blocks (HRC 3 HRB 1 high school low block, HRA block, 1 block) 5block Large, medium and V type test stand various1only
Size screwdriver various1only Dust proof plastic cover 1only
Product manual 1share Product qualification certificate 1share
