Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

    • Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace
    • Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace
  • Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

    Product Details:

    Place of Origin: China
    Brand Name: JINHAIHU
    Certification: ISO 9001
    Model Number: SX2-2.5-12N

    Payment & Shipping Terms:

    Packaging Details: Wooden case
    Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Product Name: Muffle Furnace/Box-type Resistance Furnace/Ash Test Model: SX2-2.5-12N
    Furnace Size: 300*400*600mm The Highest Temperature: 1200℃
    Apply To Power Supply: AC 220V Input Power: 2.5KW

    SX2-2.5-12N Muffle furnace/Box-type resistance furnace/Ash test

    Characteristics of the equipment:

    1) Heat up fast By 100 ℃ heat up to 1000 ℃, about 100 minutes

    2) Quick ashing

    As the ashing furnace, can into the wind hole, pipe, is conducive to fill in fresh oxygen, accelerate ashing (optional)

    3) Light in weight About 50 kg

    4) Heat preservation performance is good .Thermal insulation material is Alumina bubble brick and expanded perlite bricks.

    5) Temperature is controlled by time

    After each step working temperature rises to the set value, the timer automatically start to work, according to the set time constant temperature.

    6) The temperature control precision Adopts digital display instrument, accurate temperature control.

    7) Practical safe Grounding terminal and protect the personal safety

    Reliable SX2-2.5-12N Environmental Test Chamber 2.5KW Input Power Muffle Furnace

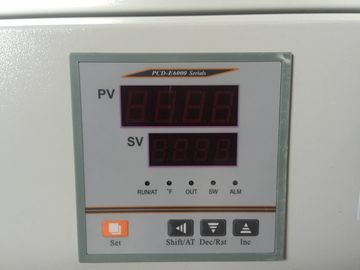

    The temperature controller Technical parameters

    The control mode Single point of SPC
    Apply to power supply AC 220V
    Number of workers 1
    Control precision ±1℃



    Technical parameters

    The furnace model 2L
    Temperature rise time 100-1200℃ about 100min
    Power source AC 220V
    power(KW) 2.5
    Heating element type Resistance wire
    The sensor type K
    Furnace size(mm)

    80*120*200mm
