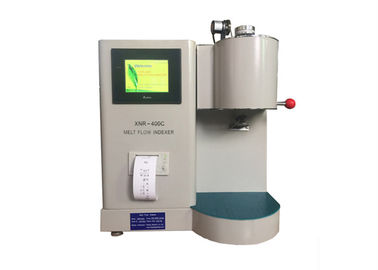

Professional XNR-400C Melt Flow Index Tester Touch Screen Display Auto Cutting

Professional XNR-400C Melt Flow Index Tester Touch Screen Display Auto Cutting

Professional XNR-400C Melt Flow Index Tester Touch Screen Display Auto Cutting

Product Details:

Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: XNR-400C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1850~2020
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: XNR-400C Price Plastic Melt Flow Index Tester/used Melt Flow Index Max.temperature: 400℃
Test Method: MFR & MVR Display: Color Touch Screen
Control: PLC Temperature Accuracy: 0.1℃
Outlet Diameter:: Φ2.095±0.005mm Outlet Length: 8.000±0.025mm

XNR-400C price plastic melt flow index tester/used melt flow index





       XNR-400C Melt Flow Indexer is an instrument used to indicate the MFR and the MVR of thermoplastic                plastic, which is designed and produced according to the standards like GB/T3682-2000, ASTM D1238-          98, JB/T5456,  ISO1133, etc. When measuring MFR, the specimen is cut automatically, the time interval of        cutting specimen is controlled by PLC and the weight is measured by the balance. When  measuring MVR,        with the displacement  measured through photoelectric encoder and the time measured matically, the                needed time for the piston to move a required distance is measured first and  the MVR could be figured            out through the formula. Both of the results of MFR and MVR will be displayed on the touch screen and            printed out by the micro-printer. The measured data is very accurate, the operation is very easy, and the          performance is very stable. It is adequate for not only engineering plastics with high melting temperature          such as polycarbonate, fluoroplastic, and nylon, but also the plastics with low melting temperature such as        polyethylene, polypropylene, polystyrene, ABS resin and acetaldehyde resin. It is widely used in plastic            production and petrochemical industry, and also in related institutions, research units and commodity                inspection department.



 Main technical data:

Model No. XNR-400C
Measuring Method MVR & MFR
Display&Print Touch Screen, Results printed by inner printer
Warranty 2 years on heating jacket
Cutting Auto
Max Temperature 400oC
Test load (Eight grades) 0.325kg,1.200kg,2.160kg,3.800kg,5.000kg,10.000kg,12.000kg,21.600kg
Controlled Accuracy ±0.2oC
Measuring Range (0.1~100)g/10min (0.01~350)cm3/10min
Display Resolution 0.1oC
Power Supply 220V 450W
Standards GB3682 ISO1133 JB/T5456 ASTM D1238 ASTM D3364



Specimen outlet part:

1. Outlet diameter: Φ2.095±0.005mm

2. Outlet length: 8.000±0.025mm

3. Screw barrel internal diameter:Φ9.550±0.025mm

4. Screw barrel length: 152±0.1mm

5. Diameter of piston-rod head: Φ9.475±0.015mm

6. Length of piston-rod head: 6.350±0.100mm
