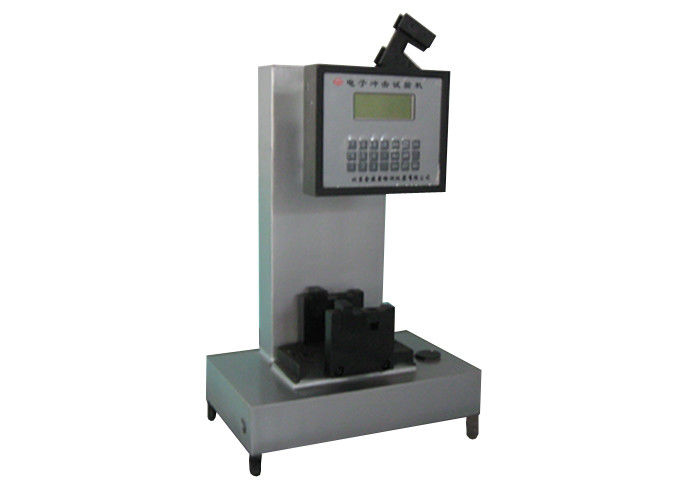

XJJD-5J Charpy Pendulum Impact Testing Machine 2.9m/S Impact Speed

XJJD-5J Charpy Pendulum Impact Testing Machine 2.9m/S Impact Speed

    • XJJD-5J Charpy Pendulum Impact Testing Machine 2.9m/S Impact Speed
    • XJJD-5J Charpy Pendulum Impact Testing Machine 2.9m/S Impact Speed
  • XJJD-5J Charpy Pendulum Impact Testing Machine 2.9m/S Impact Speed

    Product Details:

    Place of Origin: BEIJING, CHINA
    Brand Name: JINHAIHU
    Certification: ISO9001
    Model Number: XJJD-5J

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 2200 USD~2500USD
    Packaging Details: Standard export wooden cases
    Delivery Time: 10~15 work days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Product Name: XJJD-5J Pendulum Charpy Impact Tester/Charpy Impact Testing Machine Clamping Method: Charpy
    Display: LCD Impact Energy: 1, 2, 4, 5J
    Impact Speed: 2.9m/s Usage: Impact Testing Machine
    Raising Angle: 150°

    XJJD-5J Pendulum Charpy Impact Tester/Charpy Impact Testing Machine



    Charpy Impact Test Equipment Pendulum Impact Tester is determined resisting impact strength of the engineering plastics, the glass fiber, the ceramics, the cast stone, the plastic electric appliance, the insulation material, plastic pipes and nonmetallic material etc. The products accord with standards requirements of ISO179180GB/T1043GB/T 1843ASTM D256JB8762JB8761ISO9854GB18743 etc.



    The electronic impact testing machine adopts the round surface measuring angle technology and characteristics of the precision high, the stable system and wide measurement range. The digitized survey measurement display the testing experiment, the impact strength, the climbing pre-elevation, one batch of equal values, the energy loses revises automatically.

    Model XJJD-5J
    Impact speed 2.9m/s
    Impact energy 1J,2J,4J,5J
    Display LCD
    Pendulum torque

    Pd 1=0.53590 Nm, Pd 2=1.07180 Nm Pd 4=2.14359 Nm, Pd 5=2.67949 Nm

    Jaw radius 1mm
    Impact blade angle 30°
    Impact blade radius 2mm
    Standards ISO180,GB/T1043,JB/T8761

    XJJD-5J Charpy Pendulum Impact Testing Machine 2.9m/S Impact Speed
