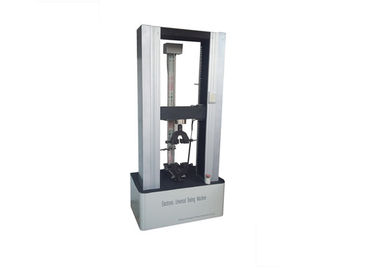

Material Computerised Universal Testing Machine Windows Working Platform

Material Computerised Universal Testing Machine Windows Working Platform

    • Material Computerised Universal Testing Machine Windows Working Platform
    • Material Computerised Universal Testing Machine Windows Working Platform
    • Material Computerised Universal Testing Machine Windows Working Platform
    • Material Computerised Universal Testing Machine Windows Working Platform
  • Material Computerised Universal Testing Machine Windows Working Platform

    Product Details:

    Place of Origin: BEIJING, CHINA
    Brand Name: JINHAIHU
    Certification: ISO9001
    Model Number: XWW-

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 5800~6500/ set
    Packaging Details: Standard export wooden cases
    Delivery Time: 10~20 work days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Universal Tensile Measure Apparatus/Universal Tensile Machine Capacity: 5KN/10KN/20KN/50KN/100KN/200KN/300KN
    Accuracy: ±0.5% Computer Control: Yes
    Force-measuring Range: 0.4%~100%FS Force-measuring Accuracy: ≤0.5%
    Power Supply: AC 220V Warranty: 12 Months

    Universal Tensile Measure Apparatus/Universal Tensile Machine



    Description:

    Universal Tensile Measure Apparatus/Universal Tensile Machine is advanced testing machine model which adopt the computer close loop control and graphic display technology. The control software is base on the Mircrosoft Windows and has the both Chinese and English languages version. Computer controls the whole testing process; the software can get the test value by all kinds of sensor and using the software analyzing module, user can get all kinds of mechanics parameter such as tensile strength, elastic modulus and elongation ration automatically. And all test data and result can be saved to computer, also the system allow user to print the test report with curve and parameter.



    The XWW series testing machine is widely used in the field of rubber, plastic, PVC pipe, board, metal wire, cable, waterproof materials and film industry. By using different kinds of accessories, it can do the test of tensile, compression, bending, shear, peeling, tearing and all other kinds of testing. This is a common testing equipment for all kinds of lab and quality control department to determine the material quality and mechanics analyzing.



    Maintechnical parameter of Universal Tensile Measure Apparatus/Universal Tensile Machine:



    Model XWW-C
    Type floor model with single test space
    Max. Load 100N200N500N1KN2KN5KN10KN20KN50KN100KN200KN300KN
    Accuracy Grade 1% (special order 0.5%)
    Force-measuring Range 2%~100%FS (special order 0.4%~100%FS)
    Force-measuring Accuracy ≤1% (special order≤0.5%)
    Deformation-measuring Range 2%~100%FS
    Deformation-measuring Accuracy 1% (special order 0.5%)
    Crossbeam Displacement Resolution 0.001mm
    Crossbeam Speed Range 0.01~500mm/min(or according to order)
    Displacement Speed Accuracy ≤ 0.5%
    Test Width 400mm (or according to order)
    Total Crossbeam Travel 600mm (or according to order)
    Clamps Many types for option
    PC System Equipped with brand computer and color inkjet printer
    Power Supply

    AC220V;400w

    (100N200N500N1KN2KN5KN)

    AC220V; <1.5KW (10KN20KN50KN) AC380V;3.0KW(100KN200KN300KN)
    Standards GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790



    Software Functions of

    Universal Tensile Measure Apparatus/Universal Tensile Machine:

    1. Use windows working platform, set all parameter with dialog forms and operate easy;

    2. Using a single screen operation, do not need to change the screen;

    3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

    4. Plan test sheet mode freely;

    5. Test data can be directly appeared in the screen;

    6. Compare multiple curve data through translation or contrast ways;

    7. With many units of measurement, the metric system and british system can switch;

    8. Have automatic calibration function;

    9. Have user-defined test method function

    10. Have test data arithmetic analysis function

    11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

    12. Can test tensile, compression, peel, fatigue and so on.



    Material Computerised Universal Testing Machine Windows Working Platform
