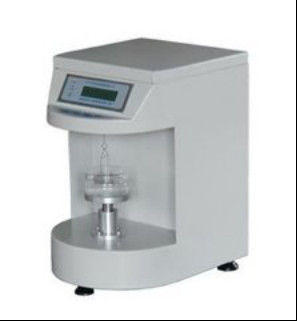

Professional Liquid Surface Tension Meter Portable 200*260*300mm Size

Professional Liquid Surface Tension Meter Portable 200*260*300mm Size

Professional Liquid Surface Tension Meter Portable 200*260*300mm Size

Product Details:

Place of Origin: BEIJING, CHINA
Brand Name: JINHAIHU
Certification: ISO9001
Model Number: ZJYW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 800~3580
Packaging Details: Standard export wooden cases
Delivery Time: 10~15 work days
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Measuring Range: 0-199.9mN/m Minimum Resolution: 0.01mN/m
Radius Of Platinum Circle: R9.55mm Radius Of Platinum Wire: R0.3mm

I Technical data:

1) Model number: JZYW-200C

2) Measuring range: 0-199.9mN/m

3) Minimum resolution: 0.01mN/m

4) Radius of platinum circle: R9.55mm

5) Radius of platinum wire: r0.3mm

6) Power supply: 220V 50Hz

7) Relative error: within ±1%

8) Size and weight: 200*260*300mm 10kg

9) Temperature requirement: (20±5)oC

II Performance:

1) Tension showed by LCD

2) Peak value holding

3)Automatic averaging

4) test-bed moved automatically and auto stop

III Standard:

JB/T9388 ISO/1409

IV Applicability:

Physical method is applied to measure the tension of liquid.This kind of tensiometer is widely used in science institutes and universities as well as water and power sectors.
